Main features

• 4 x individual esponential VCA's
• 4 x individual CV inputs
• CV ch1 multiplied to ch 2-3-4 (bypassable)
• 1 x attenuverter for each CV input
• 8hp Eurorack format
• Depth: 40mm

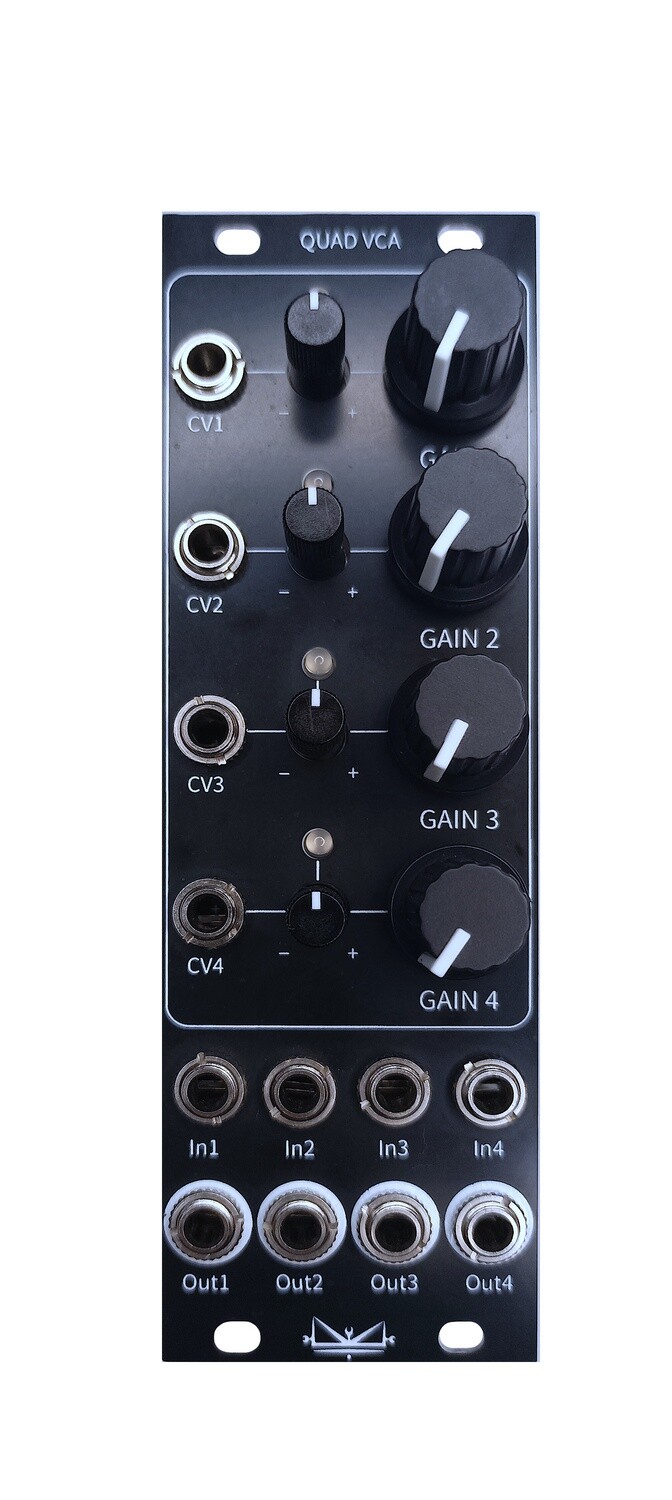

Introducing the Quad VCA, with four individual exponential VCAs housed in an 8 hp Eurorack format.

Each of the four VCAs has its own dedicated CV input, providing independent control over amplitude and modulation. The inclusion of attenuverters for each CV input ensures precise modulation, allowing you to fine-tune the dynamics of your patches with ease.

For added versatility, Channel 1 features a multiplier that routes its signal to Channels 2, 3, and 4. This feature is bypassable, by connecting a cable to any jack socket (2-3-4), the multiplier chain will be interrupted from that socket and further.

With a depth of just 40mm, the Quad VCA is designed to fit into your Eurorack setup without compromising valuable rack space. Its compact design makes it an ideal choice for both studio and live performance environments where space is at a premium.

In summary, you know what they say: "you never have enough VCA's"

Well, this is our solution in just 8hp!
