Main features

• 2164 12db Multimode filter
• LPF\HPF
• FM
• Drive based on diode clipping circuit
• 2 x Cutoff CV both with own attenuator
• Resonance CV
• 10 hp Eurorack format
• Depth: 40mm

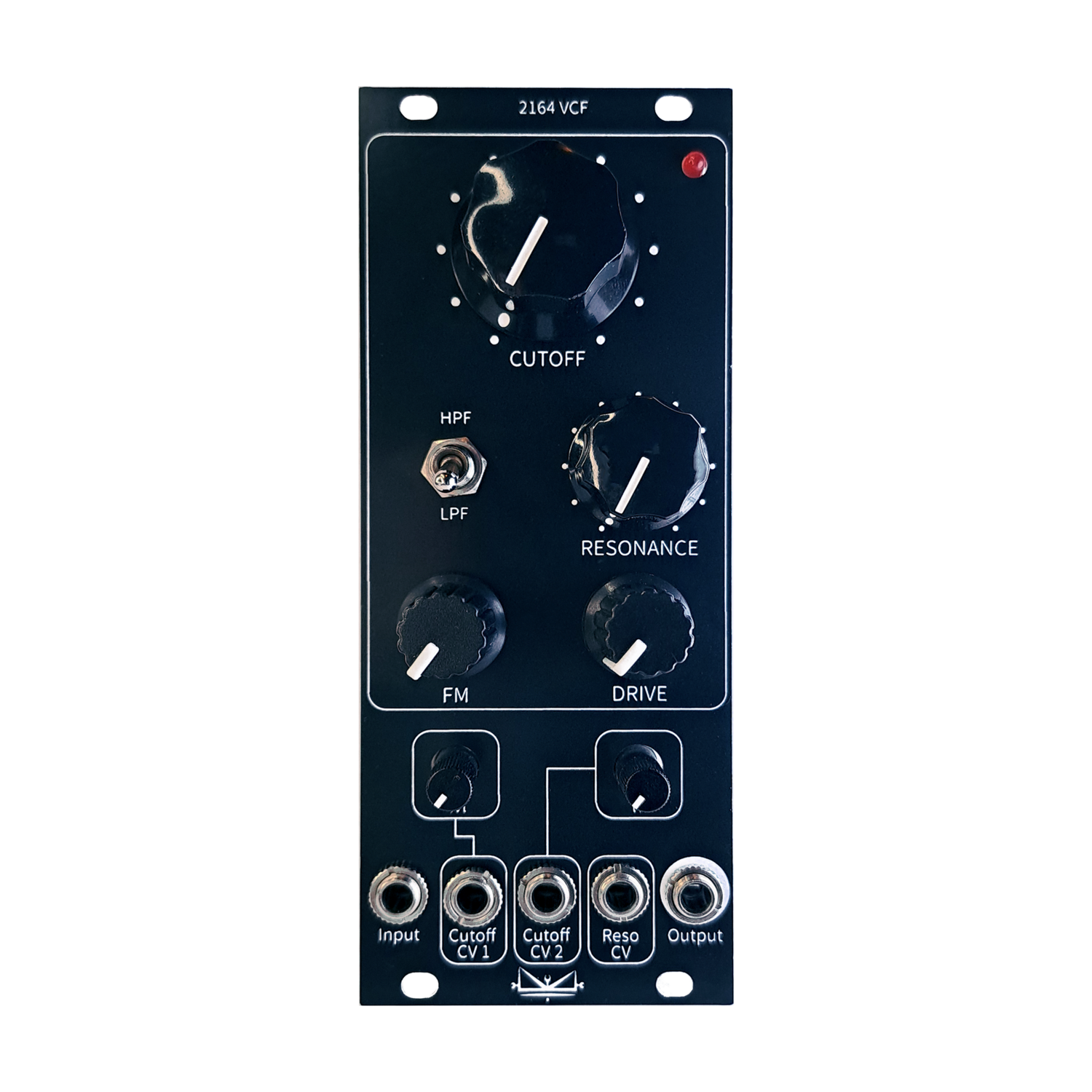

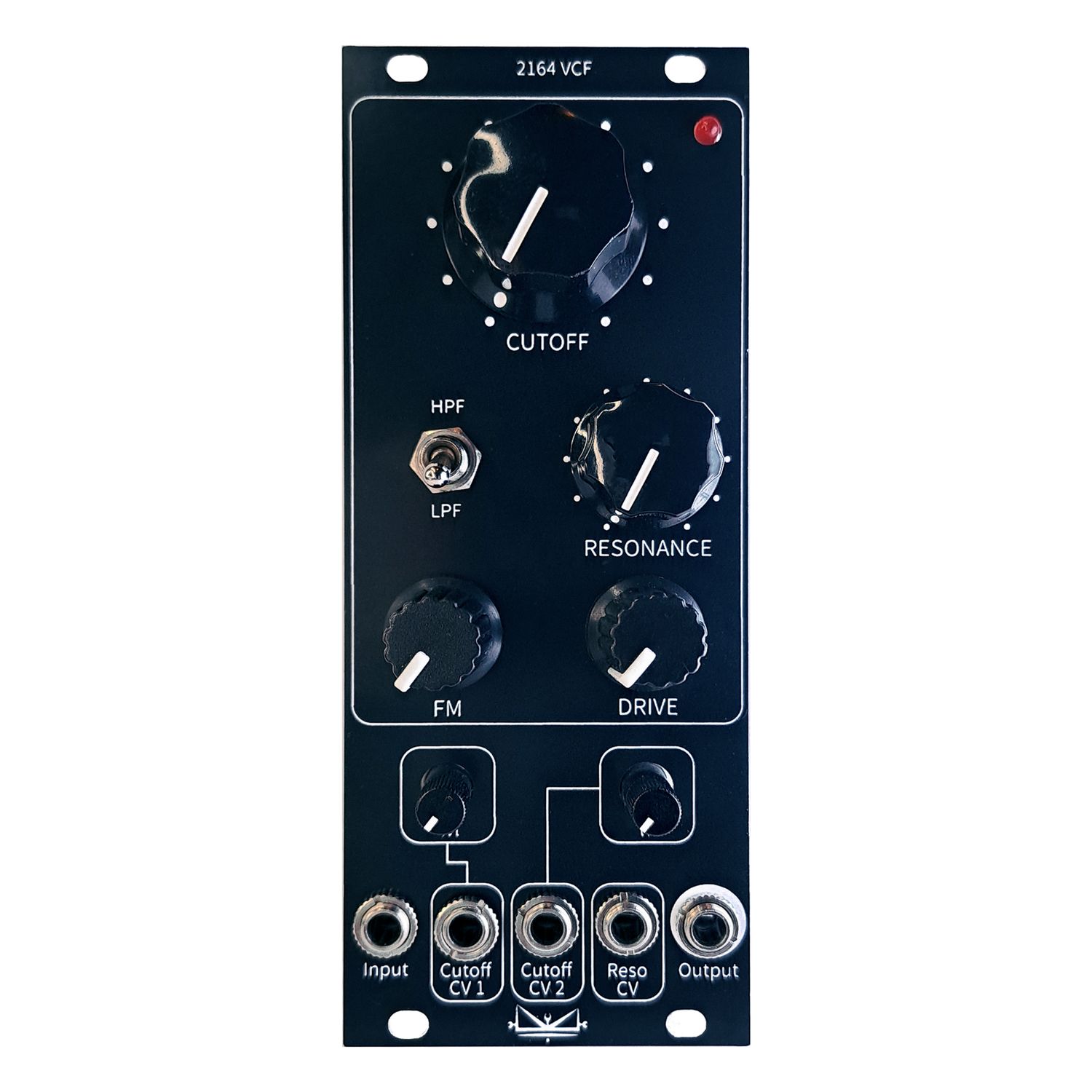

The 2164 VCF is a 10 HP Eurorack 12dB multimode filter delivers Low Pass Filter (LPF) and High Pass Filter (HPF) modes to shape your sound with precision.

Equipped with two CV inputs for cutoff frequency control, each accompanied by its own attenuator, the 2164 VCF provides dynamic and expressive filtering possibilities. Effortlessly sculpt your frequencies with the responsive cutoff control, opening up a spectrum of tonal possibilities that range from warm and mellow to sharp and resonant.

The resonance control is CV-controllable too, and when modulated, the peak of your CV will be where the resonance pot is positioned and so working in the negative side on your resonance value.

The incorporation of a Drive section, based on a diode clipping circuit, introduces harmonically rich distortion for those seeking to add grit and character to their sound.

The FM function, when turned clockwise, modulate the pot of the cutoff frequency with the output of the filter itself. This introduces a self-modulating aspect, creating evolving textures and intricate timbral shifts.

With its 10 HP form factor, the 2164 VCF effortlessly integrates into your Eurorack setup, providing a compact yet powerful solution for those in search of a versatile and characterful filter module.
