Main Features

• 4 Channel Mixer
• Modulable input levels
• Main output
• Inverted output
• 10HP Eurorack format
• Depth: 25 mm

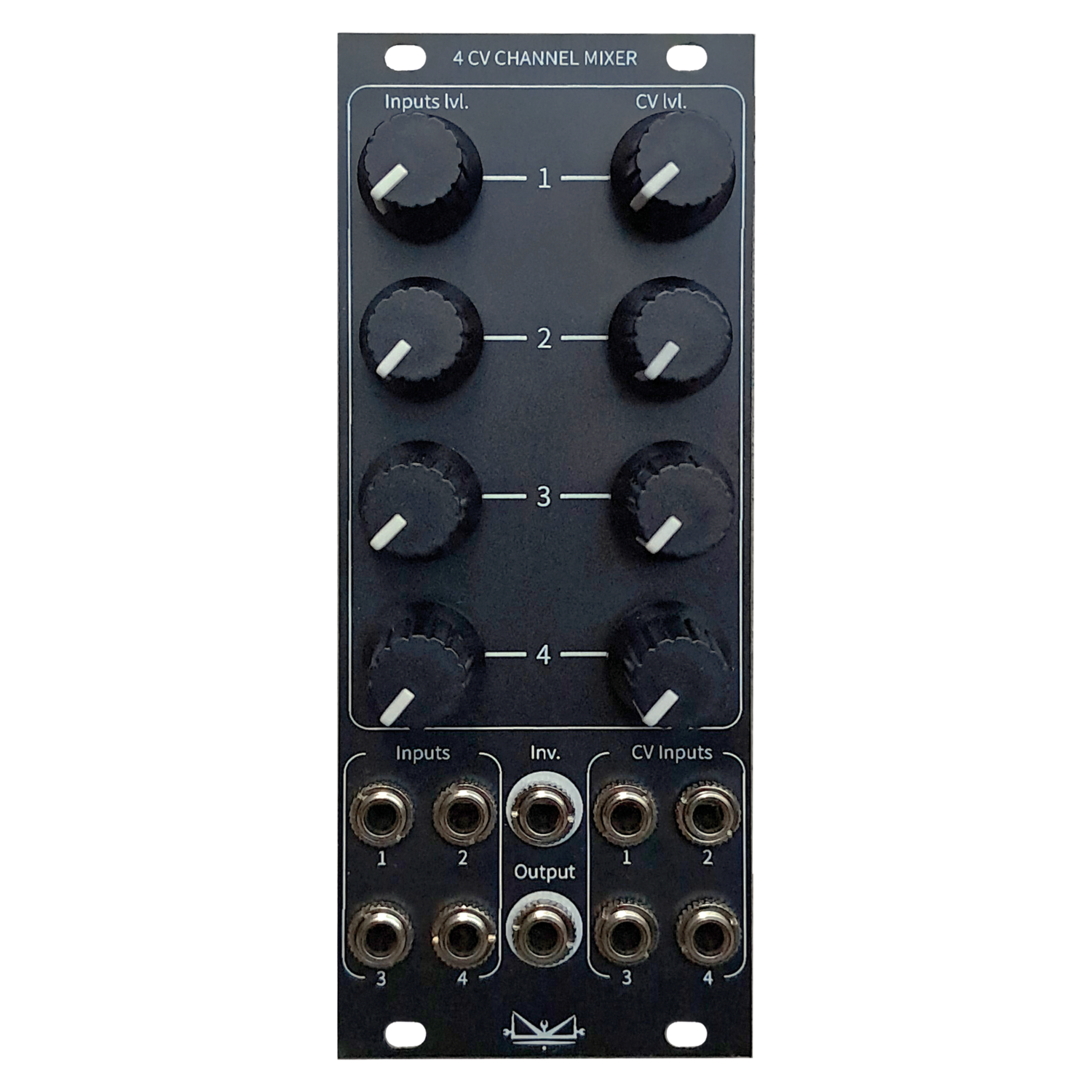

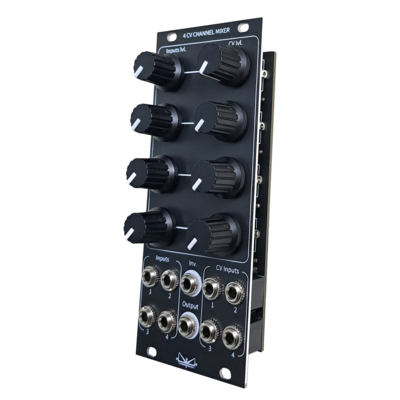

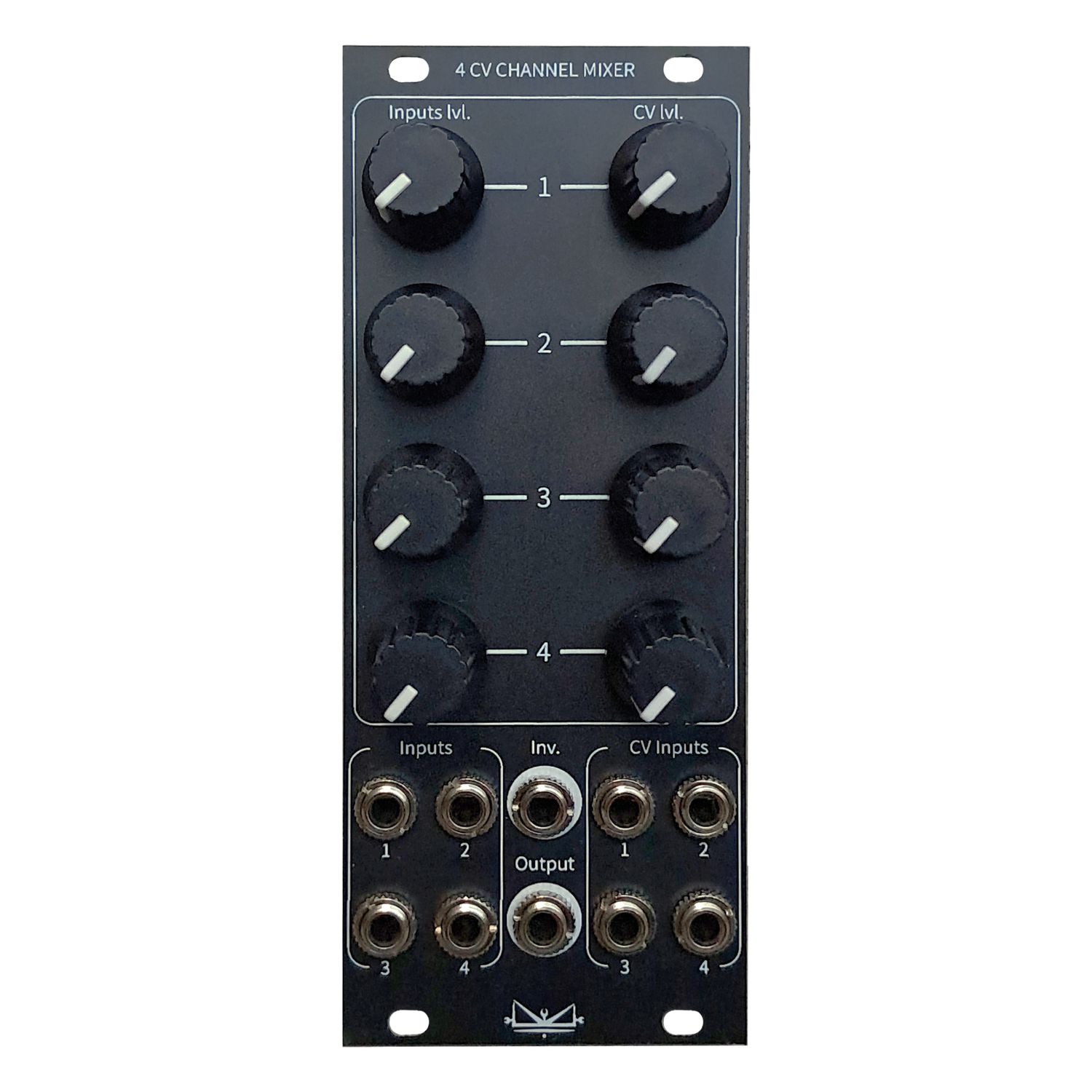

The 4 CV Channel Mixer module is a powerful and versatile mixer designed for the Eurorack format, with a width of 10 HP. This module provides the flexibility to mix four input channels, accommodating both audio and CV signals, allowing you to create complex sonic combinations and precisely control your modular setup.

Each input channel can be used to connect either audio or control voltage signals, offering a wide range of creative possibilities. You can patch oscillators, filters, modulators, drum machines, or any other audio or CV module into the 4 CV Channel Mixer. The level of these input channels can be modulated using external CV signals, enabling dynamic control over the mixing and interactions between the various signals.

The module features a main output that represents the mixed output of the four input channels. This output combines the audio or CV sources, allowing you to create intricate sound structures and route them to other modules in your system.

Additionally, the module provides an inverted output, which supplies the mixed signal with reversed polarity compared to the main output. This inverted output can be used to create unique modulation effects, invert signals, or control parameters in the opposite direction to the main signal.

With its 10 HP width, the 4 CV Channel Mixer module seamlessly integrates into your Eurorack system, enabling easy and efficient expansion and customization of your modular setup.

In summary, the 4 CV Channel Mixer module is a powerful Eurorack mixer with four input channels that support both audio and CV signals. The input channels can be modulated using external CV signals for precise control. The module offers a main output representing the mixed signals and an inverted output providing the mixed signal with reversed polarity. With its 10 HP width, this module is a versatile choice for your modular setup, offering a wide range of creative possibilities.
