Main features

• Amplitude 0-8V
• Main output
• Inverted output
• Switch inverted output (0 to -8V or 8V to 0)
• Loop function with schmitt trigger inverter
• Switch slow/fast mode (slow mode: 5ms-10sec/fast mode: 1ms-1sec)
• Gate in
• 10HP Eurorack format
• Depth: 30mm

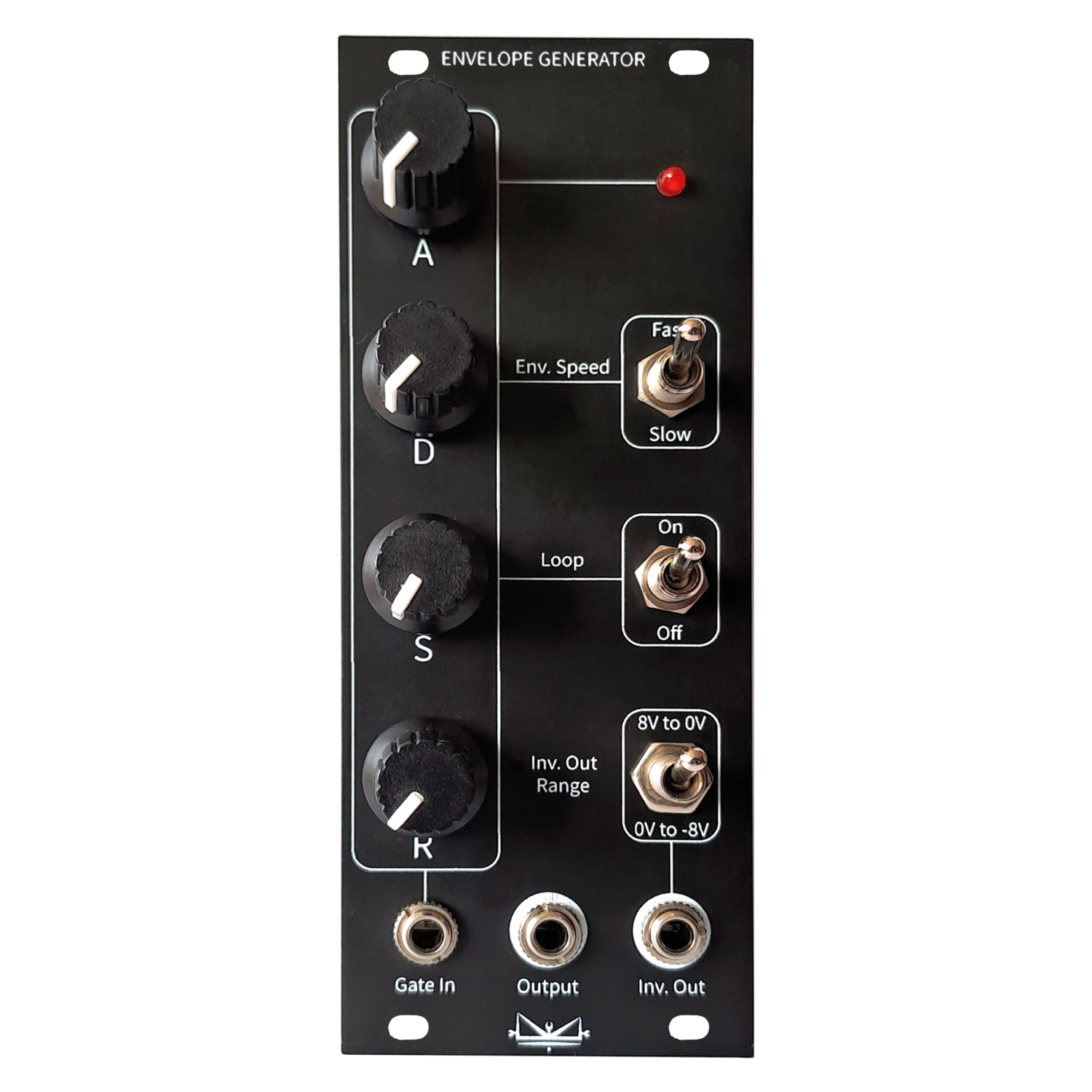

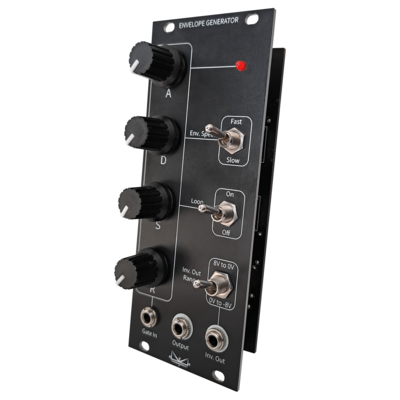

The 10 HP Envelope Generator module is a versatile tool for shaping and modulating the dynamics of sound in your Eurorack system. This module allows you to generate precise and complex envelopes, enabling you to create volume effects, percussive modulations, and more.

The module offers a switch for the inverted output. You can choose between an output ranging from 0 to -8V or from 8V to 0. This function provides the ability to invert the envelope, creating unique effects and experimenting with signal polarities.

An interesting feature is the loop function with a Schmitt trigger inverter. This mode allows you to create continuous envelope cycles, repeating the envelope once it reaches the end point. The Schmitt trigger inverter ensures stable and precise loop operation, maintaining signal consistency over time.

To accommodate different modulation needs, the module offers a switch for selecting between slow and fast modes. In slow mode, the envelope time can range from 5 ms to 10 seconds, allowing you to create long and gradually evolving envelopes. In fast mode, the envelope time can range from 1 ms to 1 second, enabling you to create short and percussive envelopes with a quick response.

Additionally, the module features a gate input, allowing you to trigger the envelope generator externally. This input enables synchronization with other modules or external signals, providing further control and modulation possibilities.

In summary, the 10 HP Envelope Generator module is a versatile tool for sound dynamics modulation in your Eurorack system. It offers adjustable amplitude from 0 to 8V, a switch for inverted output, a loop function with a Schmitt trigger inverter, a switch for selecting between slow and fast modes, and a gate input. With its compact size, this module gives you detailed and creative control over sound shaping in your modular setup.
